Salah M. Saleh (1), Fadhil J. Farhan (2), Huda H. AL-Kayoon (3), Maha K. AL-Mishrey (4), Ali H. Amtegie (5), Hamid AL-Saad (6)
General Background Polycyclic aromatic hydrocarbons are persistent organic pollutants that accumulate in aquatic sediments and pose ecological and health risks. Specific Background The Tigris River at Amara City is exposed to urban, industrial, and hydrological pressures that may promote PAH accumulation. Knowledge Gap However, detailed information on PAH concentrations and sources in this river section remains limited. Aims This study aimed to assess the concentration, spatial distribution, and sources of PAHs in surface sediments along the Tigris River at Amara City. Results Sediment samples from five stations were analyzed using GC–MS, revealing total PAH concentrations ranging from 2.73 to 206.05 ng/g, with a pronounced hotspot at Station 5. High molecular weight PAHs dominated most stations, and diagnostic ratios indicated predominantly pyrogenic sources, with minor petrogenic input at one station. Novelty This study provides site-specific evidence of localized PAH contamination and source patterns within a critical reach of the Tigris River. Implications The findings offer baseline data for environmental monitoring and support pollution management strategies in southern Iraq.
Keywords:
PAHs, River Sediments, GC–MS Analysis, Source Identification, Tigris River
Key Findings Highlights:
Marked spatial variability in sediment contamination was observed among sampling stations.
Combustion-derived compounds dominated most sampling locations.
A localized hotspot exhibited elevated carcinogenic compound levels.
Polycyclic Aromatic Hydrocarbons (PAHs) are a class of persistent organic pollutants characterized by two or more fused aromatic rings. They originate primarily from incomplete combustion of organic matter (e.g., fossil fuels, biomass, waste) and pyrogenic sources (e.g., industrial processes, vehicle emissions), as well as petrogenic sources like crude oil spills and natural seeps (The most important source of aromatic hydrocarbons is gaseous waste from oil fields) [1]. Due to their hydrophobic nature and low solubility, PAHs readily adsorb to suspended particles and accumulate in aquatic sediments, acting as long-term reservoirs of contamination [2]. This persistence poses significant ecological and human health risks, as many PAHs are carcinogenic, mutagenic, and toxic to aquatic organisms [3].
The Tigris River, a vital freshwater resource in Iraq, sustains agriculture, industry, and domestic needs along its course. At Amara City in southern Iraq, the river is exposed to multiple anthropogenic pressures. Rapid urbanization, industrial discharges, untreated municipal sewage, agricultural runoff, vehicular emissions, and historical conflict-related pollution contribute) damage caused by historical political, military, or social conflicts in the region, which have indirect but severe environmental consequences. These conflicts often lead to poor infrastructure maintenance, particularly drainage systems, resulting in inadequate wastewater management and increased pollutant discharge into water bodies(. Human activities, such as unauthorized dumping, intensified agriculture, and industrial neglect during and after conflicts, exacerbate the pollution load. The cumulative effect is significant environmental degradation affecting water and sediment quality to the degradation of water and sediment quality [4]. Additionally, reduced river flow due to upstream damming exacerbates pollutant accumulation in sediments. These factors create a critical need to assess sediment contamination, as sediments reflect historical and ongoing pollution and can release toxins back into the water column under changing conditions [5].
Monitoring PAHs in the sediments of the Tigris River at Amara City is essential for several reasons: (1) identifying contamination hotspots and sources; (2) evaluating ecological risks to benthic organisms; (3) informing public health strategies for communities relying on the river; and (4) guiding remediation efforts. Despite its importance, comprehensive data on PAH levels in this specific reach of the Tigris remains limited. This study therefore aims to quantify the concentration, composition, and spatial distribution of PAHs in sediment samples collected from the Tigris River at Amara City, southern Iraq. Consequently, this finding will contribute to a baseline understanding of contamination, support ecological risk assessments, and aid in developing targeted management strategies for this crucial ecosystem.
Study Area and Sampling Stations
Five stations were selected along the Tigris River at Amara City, Maysan Province (Fig 1, Table 1). Samples were collected systematically to represent riverine conditions affected by urban and industrial inputs.
Analytical Methods
Sedimentsamples were dried in an oven at 50 °C, grinded finely in an electrical mortar and sieved through a 63 µm mesh sieve, stored in glasses containers until analysis. 50 grams of sieved sediment were placed in cellulose thimble and extracted by using Soxhlet intermittent extraction according to the method of Goutx and Saliot, 1980 and Saleh et al., 2021 [6][7] by adding a mixture of solvents (120 ml) methanol: benzene (1:1 v/v) for 48 hrs. at temperature doesn’t exceed 40ᵒC. The combined extracts were saponification for 2 hrs. by adding (15ml) 4M MeOH (KOH) at the same temperature and cooled to room temperature. The un saponification matter was extracted with (50 ml) n-hexan using separator funnel. a 20 cm glass column packed with glass wool, 8 g silica gel (100-200 mesh), 4 g aluminum oxide (Al₂O₃, 100-200 mesh), and 4 g anhydrous sodium sulfate (Na₂SO₄) at the top. The Aromatic component was eluted by using benzene.
GC-MS examination of PAH compounds was performed using an Agilent 7890B gas chromatograph interfaced with an Agilent 5977A mass spectrometer. The temperature schedule of the GC oven was: starting temperature of 40°C, ramped at a rate of 10°C/min to a final temperature of 310°C. The injector temperature was set to 260°C by employing split mode (ratio 75:1). The flow control was set to constant flow with the pressure of 7.0699 psi, total flow of 79 mL/min, column flow of 1 mL/min, and purge flow of 3 mL/min.
Mass spectrometer conditions: ion source temperature 250°C, quadrupole temperature 150°C, interface temperature 280°C. Solvent cut time was constant at 4.00 minutes, with start time 4.00 minutes and end time 35.00-40.00 minutes. Individual PAH compounds were identified by comparison of retention times and mass spectra with authentic standards and the NIST mass spectral library. Quantification was done by external standard calibration using PAH standards.

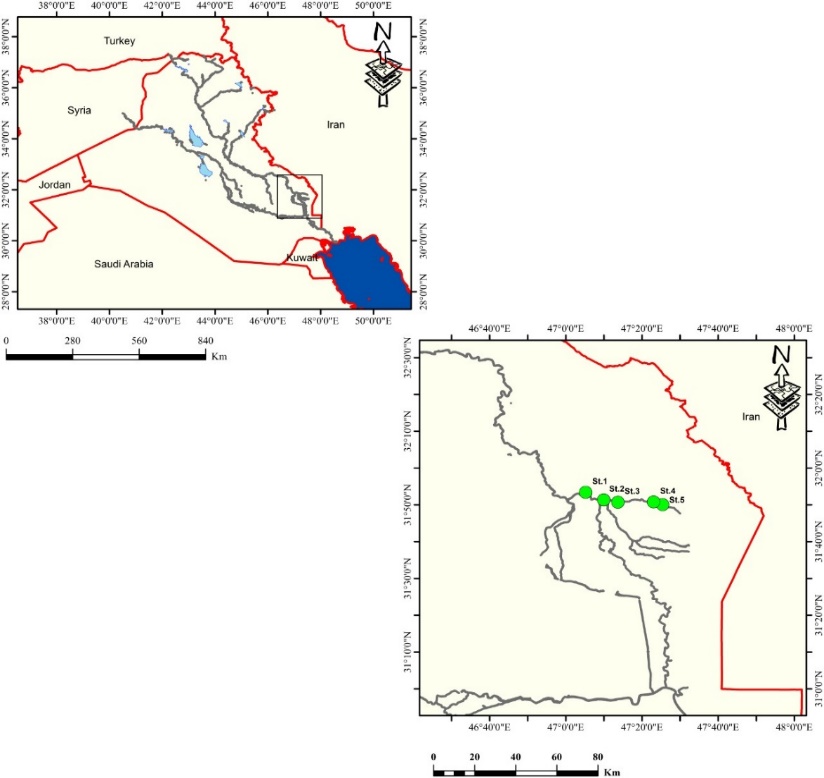

Figure 1. Fig(1) sample location sites
The attached data in table 2 presents the concentration and distribution of PAH compounds in five stations at Messan governorate, Total PAH levels ranged from 2.73 to 206.04 ng/g dry weight.
In addition, Table 2 shown the High molecular weight of PAHs (HMW-PAHs, 4–6 rings) dominated all stations, while low molecular weight (LMW-PAHs) was minor. The LMW/HMW ratio was consistently less than 1 across all stations, indicating a predominance of combustion-related (pyrogenic) and oil-derived (petrogenic) sources as shown in table 2 at st3, moreover the Fl/Py> 1 also supports this conclusion. Mixed industrial and traffic-related sources are common at Amara City Context: While specific Amara studies are limited, its status as a major southern city suggests levels likely fall between moderately contaminated rural areas and highly contaminated at Amara. Expected ΣPAHs could range from hundreds to potentially low thousands of ng/g dw, influenced by local sources like municipal waste, vehicle emissions, and possible agricultural burning.
Rural/Upstream Areas: Lower concentrations are typically found upstream of major cities and in less industrialized stretches. Values often range from <100 to 500 ng/g dw ΣPAHs [8].
Low molecular weight (LMW) PAHs (e.g., Naphthalene, Acenaphthene, Fluorene) are consistently present at lower levels across all stations. The total PAH concentrations increase downstream, peaking at Station 5, then slightly decreasing at all Stations.
At the level of individual hazardous PAH compounds, Station 5 exhibited higher concentrations than the other stations. The recorded values were 1.014 ng/g for anthracene, 2.340 ng/g for fluoranthene, 1.338 ng/g for pyrene, 27.702 ng/g for benzo(a)fluoranthene, 24.952 ng/g for benzo (b + k) fluoranthene, 78.586 ng/g for dibenzo(a)pyrene, 13.563 ng/g for indeno(1,2,3-cd) pyrene + dibenzo(a,h)anthracene, and 46.832 ng/g for benzo(g,h,i) perylene. In contrast, the highest concentration of chrysene (23.847 ng/g) was observed at Station 1, this could be due to a major point source nearby, such as intense industrial discharge (e.g., heavy industry, power generation), a major municipal wastewater outfall with high solids loading, or historical accumulation from intense combustion activities. The dominance of carcinogenic 5- and 6-ring PAHs (BaF, BbF, BkF, DahA, IcdP, BghiP) at St5 is particularly alarming due to their high toxicity and persistence [9].
High Molecular Weight (HMW) PAHs Dominate: 4-, 5-, and 6-ring PAHs (e.g., Fluoranthene, Pyrene, Benzo[a]anthracene, Chrysene, Benzo[b]fluoranthene, Benzo[k]fluoranthene, Benzo[a]pyrene, Indeno[1,2,3-cd] pyrene, Dibenzo[a,h]anthracene, Benzo[ghi]perylene) are generally the most abundant and concerning fractions due to their higher carcinogenicity [7].
Moreover, the minor Petrogenic Inputs: Lower molecular weight PAHs (e.g., Phenanthrene, Fluoranthene relative to Benzo[a]pyrene) and ratios like LMW/HMW PAH sometimes indicate minor contributions from petroleum spills or uncombusted fossil fuels in specific locations, like near refineries or oil terminals [8].
The construction of upstream dams—particularly in Turkey—has markedly decreased the discharge of the Tigris River within Iraq. Reduced flow intensifies pollution impacts by limiting dilution capacity and prolonging the residence time of contaminants, which promotes their accumulation in river sediments. This effect is especially pronounced in the southern, low-velocity reaches of the river, such as the area near Amara [10]. In addition, contaminant concentrations exhibit notable seasonal variability. Elevated levels are commonly recorded during dry periods due to diminished river discharge, reduced dilution, and enhanced particle deposition. In contrast, flood events may resuspend contaminated sediments while temporarily lowering concentrations through increased dilution [11].
A strong positive relationship is evident between downstream proximity and polycyclic aromatic hydrocarbon (PAH) contamination. The highest total PAH concentration was recorded at Station 5 (St5; ∑PAHs 206.05 ng/g), representing a pronounced outlier and indicating the presence of intense, localized pollution sources, such as industrial effluents or urban runoff. Table 3 shown the origin of PAHs according to diagnostic ratio analysis revealed a predominance of pyrogenic sources across most stations (St1–St3 and St5), characterized by elevated high-molecular-weight (HMW) PAHs associated with combustion processes. In contrast, Station 3 exhibited a petrogenic signature, likely reflecting inputs from unburned petroleum hydrocarbons the references of these classifications illustrated at Table 5. Station 4 showed the lowest ∑PAHs value (2.73 ng/g), with dominance of low-molecular-weight (LMW) compounds, suggesting minimal anthropogenic influence [12]. From an ecological perspective, the elevated levels of carcinogenic HMW PAHs at St5, including benzo(a)fluoranthene and dibenzo(a)pyrene, pose significant environmental and health risks and therefore warrant immediate attention (e.g., Shatt al-Arab studies) [13]. Figure 2 illustrates the percentage distribution of PAHs in the study area, showing the high proportion of polycyclic aromatic compounds at station 5.

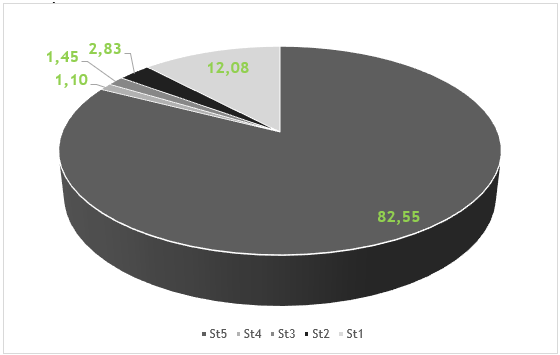

Figure 2. Fig (2) Percentage of ∑PAHs in each station.
The table 3 represents the classification ranges of PAHs based on the criteria of Baumard et al. [14]. According to this classification, sediments at Station (St5) fall within the moderately polluted category, whereas sediments from the remaining stations are characterized by low levels of contamination.
Source Apportionment: The diagnostic ratio analysis (Table 4, 5) provides strong evidence that combustion processes (pyrogenic sources) are the primary contributors to PAHs in these sediments. This is consistent with potential sources in an urban setting like Amara City, including:
Vehicular exhaust (gasoline and diesel engines). Coal/wood/biomass burning for heating or cooking. Industrial combustion processes (if present locally). Atmospheric deposition of particulates from regional combustion sources. Burning of waste (municipal or agricultural).
The minor petrogenic indicators at St3 and St4 could suggest trace contributions from uncombusted petroleum (e.g., lubricating oils, fuel spills, natural seeps), but these are clearly overshadowed by the pyrogenic signal across the study area, especially at the most polluted sites (St1, St5).
Comparison with Regional Studies: Table (5) compares ∑PAH levels and dominant sources found in this study with other relevant investigations in rivers within Iraq and neighboring countries as shown in Table (6).
Based on Table 1 No linear trend exists between station position (St1 to St5) and total PAH (∑PAH) concentrations. Levels are:
St1 = 30.15, St2 = 7.06, St3 = 3.61, St4 = 2.73, St5 = 206.05 ng/g.
This non-monotonic pattern—especially the extreme spike at St5—rules out simple linear or downstream accumulation models.
• Spatial distribution is source-driven, not distance-driven: St5 likely receives input from a localized point source (e.g., industrial discharge), while St3 shows unusually low contamination.
• Diagnostic ratios (e.g., LMW/HMW < 1 at all stations) consistently indicate pyrogenic sources, confirming that differences in concentration—not source type—drive spatial variation
Different PAH profiles at specific Amara stations are mainly due to local pollution sources, differences in human activities along the river, episodic contaminant inputs, and varying sediment characteristics. While the overarching PAH composition is similar (dominated by HMW compounds, reflecting comparable sources), there are notable differences in the abundance of specific PAHs between stations—most strikingly for Dibenzo[a,h]anthracene at station 5 and slight increases in Benzo[k]fluoranthene and Chrysene downstream. These differences may result from varying local sources, land use, or point-source discharges affecting specific sites. The distribution of PAH concentrations among the five stations in Amara City reveals a trend of moderate increase from the uppermost station (Station 1) to a maximum at Station 5, These findings reflect local influences and suggest both urban runoff and industrial discharges are key contributors to sediment contamination in this region.
Recommendations
Enhance continuous PAH monitoring in Tigris sediments. Enforce stricter industrial waste management and emission controls. Promote public awareness regarding risks linked to PAH contamination. Develop ecological risk assessment protocols specific to southern Iraq’s riverine system.and also
Establish a national pollution database.,
·Track the main sources of pollutants
· Assess toxin accumulation in fish
· Activate and tighten environmental laws
· Develop emergency plans for spills
· Enhance regional cooperation with basin countries
· Utilize water treatment technologies
· Support local research
· Raise awareness among farmers
· Plant trees along riverbanks
[1] H. I. Abdel-Shafy and M. S. Mansour, “A Review on Polycyclic Aromatic Hydrocarbons: Source, Environmental Impact, Effect on Human Health and Remediation,” Egyptian Journal of Petroleum, vol. 25, no. 1, pp. 107–123, 2016.
[2] C. Anyakora and H. Coker, “Assessment of Polynuclear Aromatic Hydrocarbon Content in Four Species of Fish in the Niger Delta by Gas Chromatography/Mass Spectrometry,” African Journal of Biotechnology, vol. 6, no. 6, 2010.
[3] IARC Working Group, Some Non-Heterocyclic Polycyclic Aromatic Hydrocarbons and Some Related Exposures, IARC Monographs, vol. 92, Lyon, France, 2010.
[4] F. M. Saleem et al., “Concentrations, Sources and Distribution of Polycyclic Aromatic Hydrocarbon Compounds in Basrah Soils, Iraq,” Baghdad Science Journal, vol. 20, no. 3, 2023.
[5] Z. A. Salem et al., “Origin and Sources of Polycyclic Aromatic Hydrocarbons in Sediment Cores from Tigris, Euphrates and Shatt Al-Arab Rivers,” Technology Audit and Production Reserves, vol. 5, no. 3, pp. 20–28, 2022.
[6] M. Goutx and A. Saliot, “Relationship between Dissolved and Particulate Fatty Acids and Hydrocarbons in Villefranche Bay,” Marine Chemistry, vol. 8, no. 4, pp. 299–318, 1980.
[7] S. M. Saleh et al., “Assessment of PAHs in Water and Sediments at Al-Hammer Marsh, Iraq,” Pollution Research, vol. 40, no. 1, pp. 79–87, 2021.
[8] M. S. Diary and F. M. Abdulhussein, “Pollution Assessment of Tigris River Sediments in Baghdad,” Iraqi Geological Journal, vol. 57, no. 2A, pp. 14–29, 2024.
[9] A. R. Shnaishel et al., “Assessment of PAH Pollution in Sediments along Tigris River,” International Journal of Environmental Protection, vol. 45, no. 8, pp. 691–701, 2025.
[10] N. Al-Ansari, “Management of Water Resources in Iraq,” Engineering, vol. 5, no. 6, pp. 667–684, 2013.
[11] X. X. Lu and S. D. X. Chua, “River Discharge Changes in the Mekong River,” Hydrological Processes, vol. 35, no. 7, 2021.
[12] M. B. Yunker et al., “PAHs in the Fraser River Basin,” Organic Geochemistry, vol. 33, no. 4, pp. 489–515, 2002.
[13] H. Al-Saad et al., “Distribution of PAHs in Soils of Shatt Al-Arab Delta,” Soil and Water Research, vol. 14, no. 2, 2019.
[14] P. Baumard et al., “Polycyclic Aromatic Hydrocarbons in Mediterranean Sediments,” Environmental Toxicology and Chemistry, vol. 17, no. 5, pp. 765–776, 1998.
[15] H. Budzinski et al., “Evaluation of Sediment Contamination by PAHs,” Marine Chemistry, vol. 58, nos. 1–2, pp. 85–97, 1997.
[16] R. E. Countway et al., “PAH Distributions in Estuarine Surface Waters,” Organic Geochemistry, vol. 34, no. 2, pp. 209–224, 2003.
[17] W. A. Farid et al., “PAHs in Surface Sediments of Shatt Al-Arab River,” Journal of Natural Sciences Research, vol. 6, no. 8, pp. 46–55, 2016.
[18] B. Karacik et al., “PAHs and Effects on Marine Organisms in Istanbul Strait,” Environment International, vol. 35, no. 3, pp. 599–606, 2009.
[19] N. Issa and S. Vempatti, “Oil Spills in the Arabian Gulf,” Environment and Natural Resources Research, vol. 8, no. 1, pp. 144–153, 2018.
[20] S. Unlu et al., “PAHs in Lake Iznik Sediments,” Bulletin of Environmental Contamination and Toxicology, vol. 85, no. 6, pp. 573–580, 2010.
[21] J. S. Lubeck et al., “Source Apportionment of PAHs in Khuzestan Sediments,” Marine Pollution Bulletin, vol. 110, no. 1, pp. 584–590, 2016.
[22] I. Bouloubassi et al., “PAH Transport by Sinking Particles,” Marine Pollution Bulletin, vol. 52, no. 5, pp. 560–571, 2006.
